- Brand
- Planet
- EAN
- 4711605284059
- Management — Industrial protocols
- ERPS (ITU G.8032), Modbus TCP, IEEE 1588v2 PTP
- Management — Layer
- L3 managed

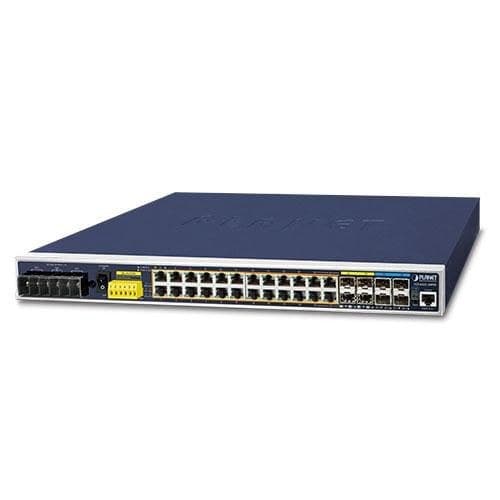

- Model
- IGS-6325-24P4X
- Physical & environmental — Digital I/O
- 2x DI, 2x DO
- Physical & environmental — Enclosure
- IP30 metal, 19-inch rack-mountable
- Physical & environmental — Operating temperature
- -40 to 75 °C
- Physical & environmental — Power input
- Dual 48-56 V DC, redundant
- Ports — 10G SFP+ slots
- 4x 10GBASE-SR/LR
- Ports — Console
- RJ45 to RS232
- Ports — Gigabit RJ45 PoE+ ports
- 24x 10/100/1000BASE-T, IEEE 802.3at
- Ports — SFP slots
- 4x 100/1000BASE-X (shared with ports 21-24)
- Power over Ethernet — Per-port maximum
- 36 W
- Power over Ethernet — Standard
- IEEE 802.3at PoE+
- Power over Ethernet — Total PoE budget
- Up to 440 W (dual 52-56 V DC input); 240 W single input
