- Audio - Compliant Standards
- High Definition Audio
- Audio - Type
- HD Audio (8-channel)
- Basic Specifications - Audio
- HD Audio (8-channel)
- Basic Specifications - Chipset Type
- Intel H610
- Basic Specifications - Compatible Processors
- (supports 12th Generation Intel Core / Pentium Gold / Celeron)
- Basic Specifications - EAN
- 4711081758211
- Basic Specifications - Form Factor
- Micro ATX
- Basic Specifications - LAN
- Gigabit Ethernet, 802.11a/b/g/n/ac, Bluetooth 5.0
- Basic Specifications - Manufacturer's Part Number
- 90MB1C80-M0EAY0
- Basic Specifications - Max RAM Size
- 64 GB
- Basic Specifications - Model

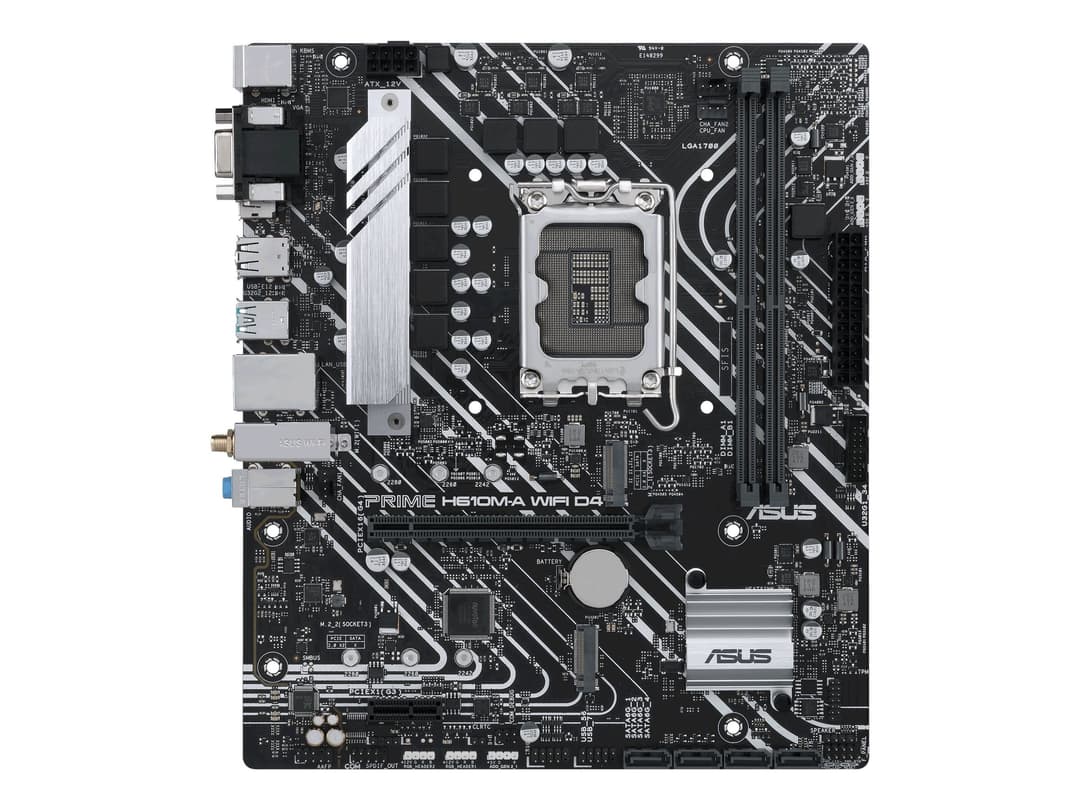

- ASUS PRIME H610M-A WIFI D4
- Basic Specifications - Processor Socket
- 1 x LGA1700 Socket
- Basic Specifications - Product Description
- ASUS PRIME H610M-A WIFI D4 - motherboard - micro ATX - LGA1700 Socket - H610
- Basic Specifications - Product Type
- Motherboard - micro ATX
- Basic Specifications - RAM Supported
- 2 DIMM slots - DDR4, non-ECC, unbuffered
- Basic Specifications - Storage Ports
- 4 x SATA-600, 2 x M.2
- Basic Specifications - USB / FireWire Ports
- 2 x USB 3.2 Gen 2 + 4 x USB 2.0 + (2 x USB 3.2 Gen 1 + 3 x USB 2.0 via headers)
- Expansion / Connectivity - Expansion Slots
- 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1
- Expansion / Connectivity - Interfaces
- 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x VGA ¦ 2 x USB 3.2 Gen 2 ¦ 1 x PS/2 mouse ¦ 4 x USB 2.0 ¦ 1 x PS/2 keyboard ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack
- Expansion / Connectivity - Internal Interfaces
- 3 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x speaker - header
- Expansion / Connectivity - Power Connectors
- 24-pin main power connector, 8-pin ATX12V connector
- Expansion / Connectivity - Storage Interfaces
- SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 3.0 -connectors: 2 x M.2
- Features - BIOS Features
- UEFI BIOS, ASUS EZ Flash 3
- Features - Hardware Features
- Intel Turbo Boost Max Technology 3.0, Intel Turbo Boost Technology 2.0, jack retasking, audio jack detect technology, ASUS 5X Protection III, ASUS DIGI+ VRM, LANGuard, ASUS Overvoltage Protection, ASUS SafeSlot Core, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-Slot, Armoury Crate, ASUS TurboV EVO, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert 2+, CrashFree BIOS 3, ASUS EZ DIY, Preboot eXecution Environment (PXE)
- Features - Sleep / Wake Up
- Wake on LAN (WOL), wake on PME
- General - Chipset Type
- Intel H610
- General - Compatible Processors
- (supports 12th Generation Intel Core / Pentium Gold / Celeron)
- General - Max Processors Qty
- 1
- General - Processor Socket
- LGA1700 Socket
- General - Product Type
- Motherboard - micro ATX
- LAN - Network Interfaces
- Gigabit Ethernet, 802.11a/b/g/n/ac, Bluetooth 5.0
- Miscellaneous - Cables Included
- 2 x Serial ATA cable
- Miscellaneous - Compliant Standards
- DisplayPort 1.4
- Miscellaneous - Depth
- 21.1 cm
- Miscellaneous - Included Accessories
- I/O back plate, 1 x M.2 screw, ASUS Wi-Fi moving aerial
- Miscellaneous - Software Included
- ASUS CPU-Z, ASUS AI Suite III, Norton AntiVirus (Trial), WinRAR, Drivers & Utilities
- Miscellaneous - Width
- 24.4 cm
- Supported RAM - Bus Clock
- 2133 MHz, 2400 MHz, 2800 MHz, 2666 MHz, 2933 MHz, 3000 MHz, 3200 MHz
- Supported RAM - Features
- Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
- Supported RAM - Max Size
- 64 GB
- Supported RAM - Registered or Buffered
- Unbuffered
- Supported RAM - Supported RAM Integrity Check
- Non-ECC
- Supported RAM - Technology
- DDR4
